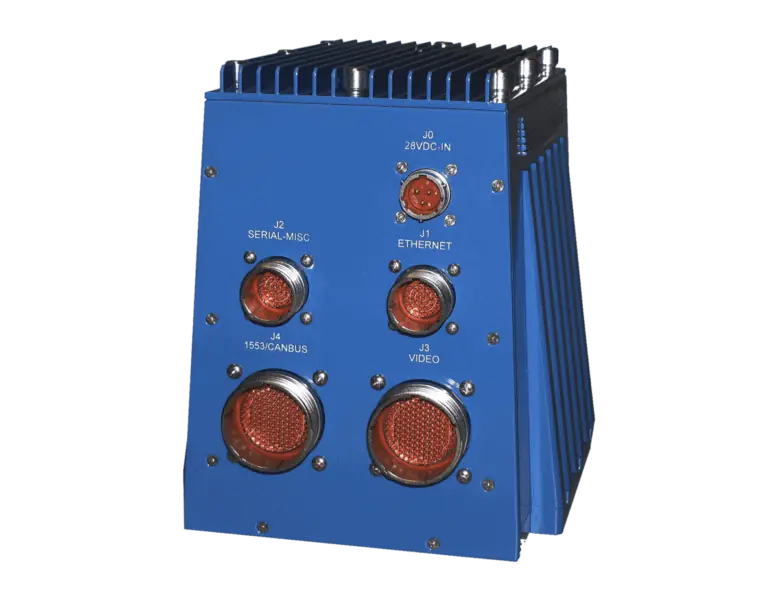

SFF-4 Chassis
The SFF-4 is a small form factor ATR-style chassis designed to provide maximum strength and cooling for SWaP-restricted UAV and unmanned systems computing. Available with 5 or 6 slots, it supports OpenVPX, VPX REDI and CompactPCI.
The conduction-cooled chassis is engineered with extended temperature, shock and vibration tolerance, and is available with a 200 W military-grade power supply.
Specifications:
| Dimensions (W x H x D): | 6 x 7.62 x 7” (152.4 x 193.55 x 177.8 mm) |
| Weight: | 15 lbs inc. power supply |
| Slots: | x4 1.0” pitch OpenVPX per VITA 65x4 1.0” pitch VPX REDI per VITA 48.2x5 0.8” pitch cPCI per ANSI/VITA 30.1 |
| Power Input: | 28 VDC, 200W |
| Shock & Vibration: | 40 g, 11 ms, MIL-STD-810 |
| EMI/EMC: | MIL-STD-461E |
