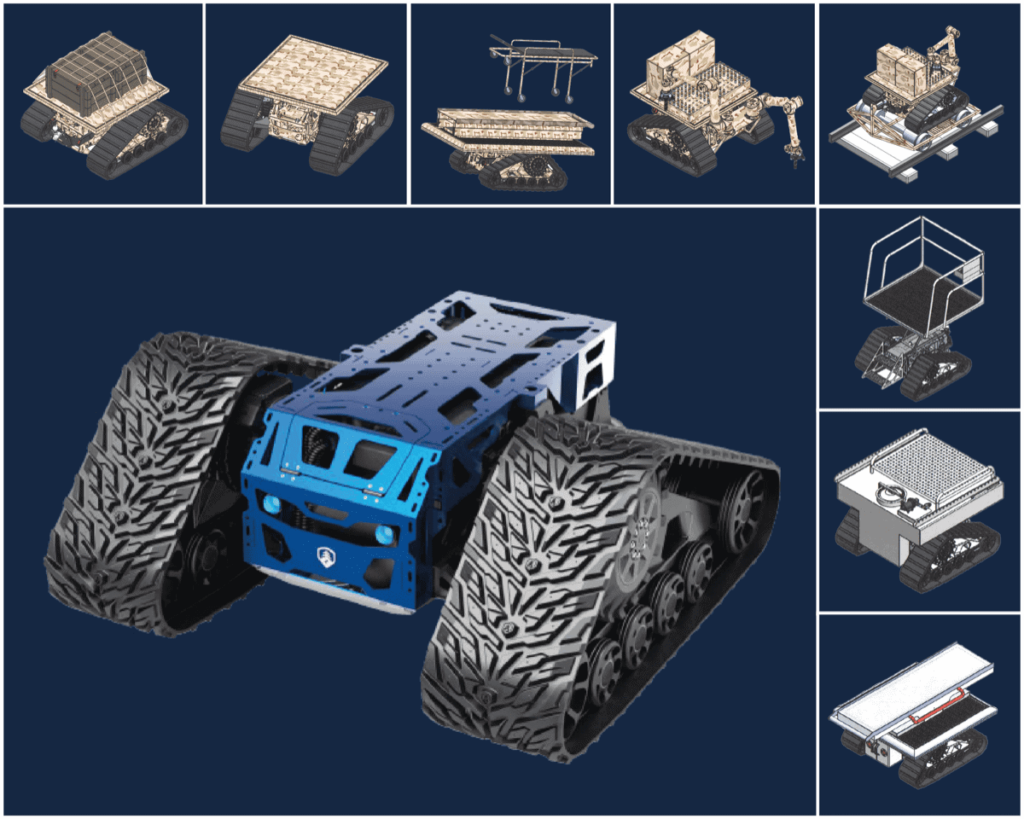

Robotic UGV Platform

Our Robotic Platform is designed for civil protection, rescue missions, carrying military equipment, tools, and agricultural accessories. Powerful and strong, this electric UGV can carry heavy payloads and can be controlled remotely via telecommunications.

Specifications:

  • Weight: 255 Kg
  • Torque: 1000 Nm
  • Peak Power: 18 Kw
  • Top Speed: 20 Km/H
  • Hoist Power: 300 Kg
  • Battery: 9.7 Kwh
  • Operating Inclination: 45°
  • Dimensions: 147 X 123 X 70 Cm
  • Trailer Load: 300 Kg unbraked
  • 500 Kg braked
  • External Power Output: 12v/96v
  • Fast Charger: 5kw/400v
  • Remote Control
  • Towing Hitch

Watch our robotic platform in action: https://youtu.be/KVgs57ZTP80
