The ANELLO X3 is the world’s smallest and lightest high-performance three-axis optical gyroscope IMU, offering ultra-low drift and noise levels in an incredibly compact package. Featuring cutting-edge SiPhOG© (Silicon Photonics Optical Gyroscope) technology, it utilizes three separate SiPhOG© units, each with its own independent six-axis redundant IMU sensor, CPU and power subsystem for the utmost in fault tolerance and reliability.

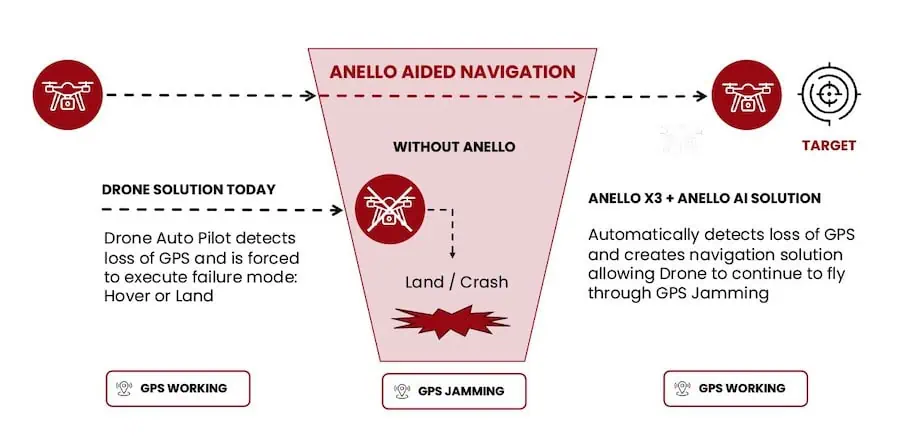

When combined with ANELLO’s advanced AI solution, the ANELLO X3 can be used to create a robust low-drift and low-noise navigation capability for GPS-denied environments, allowing drones and robotics to continue operating reliably even under jamming and spoofing conditions. The robust sensor is IP54-rated and offers serial RS-422 and UART interfaces for easy integration.
| Dimensions: | 51 x 51 x 44.5 mm (2 x 2 x 1.75”) |
| Weight: | 182g (0.4 lbs) |
| Power: | 4-24 VDC, <5W |
| Gyro Range: | +/- 200°/s |
| Gyro Bias Instability: | < 0.5°/hr |
| ARW: | < 0.05°/√hr |
| Accel Range: | 8g |
| Accel Bias Instability: | 20μg |
| VRW: | 0.03 m/s/√hr |
