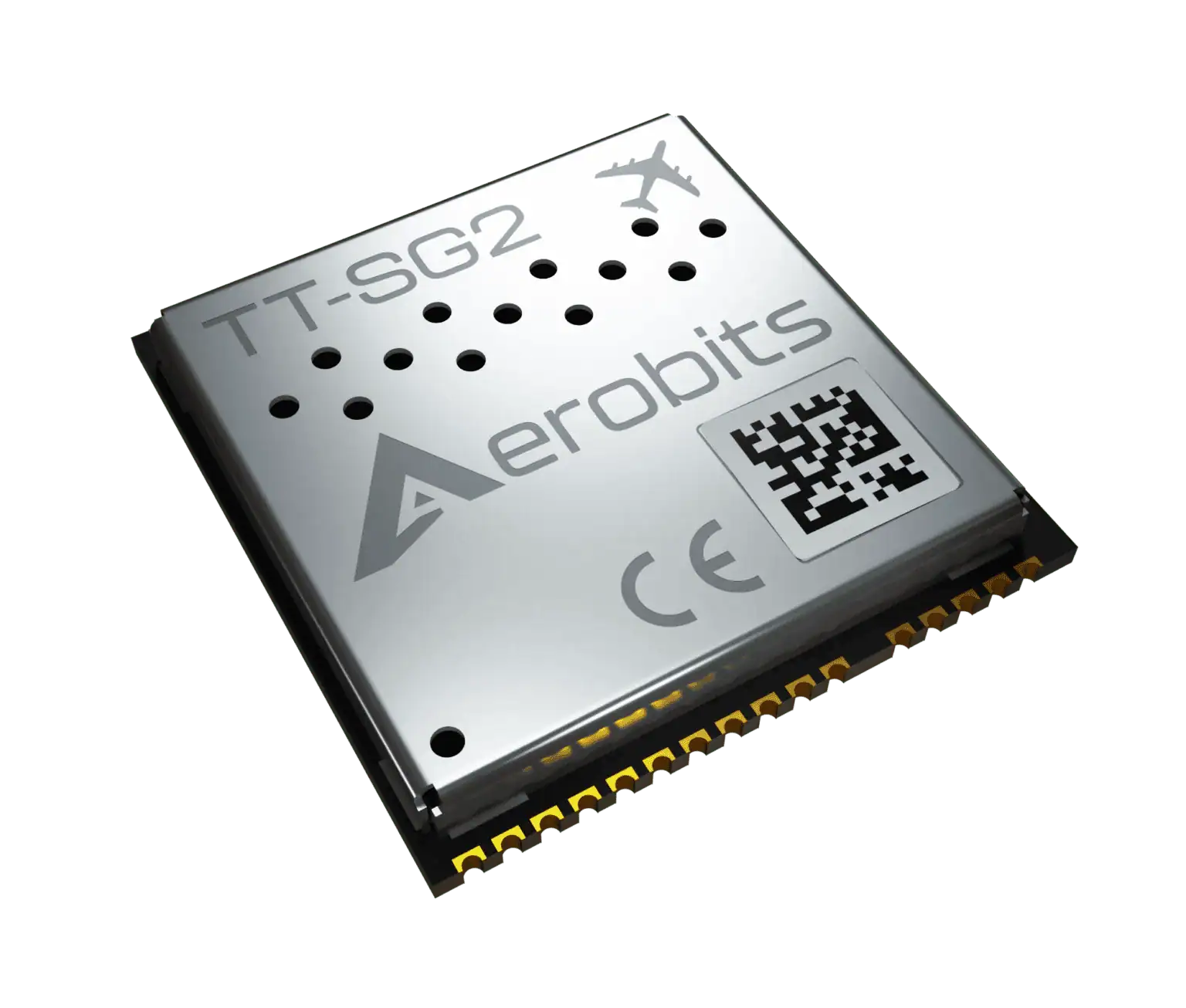

TT-SG2 OEM Module
The TT-SG2 is an ultra-miniature OEM module that offers ADS-B IN and Mode A/C/S functionality along with a built-in GNSS receiver. Easily incorporated into the most SWaP-limited of drone designs, it is ideal for a variety of applications including SAA/DAA (Sense and Avoid / Detect and Avoid), surveillance, traffic analysis, and unmanned traffic management (UTM) systems.
The module is based on proven FPGA-in-the-Loop technology, enabling high-speed RF data processing with a significantly reduced number of electronic components. With a fast UART and simple AT configuration commands, it is easy to integrate and allows firmware to be customized with non--standard functions.
Specifications:
| Dimensions: | 19 x 18.5mm |
| Weight: | 1.6g |
| Current Consumption: | 100 mA |
| Carrier Frequency: | 1090 MHz |
| RX Sensitivity: |
ADS-B -85 dBm GNSS -167 dBm |
