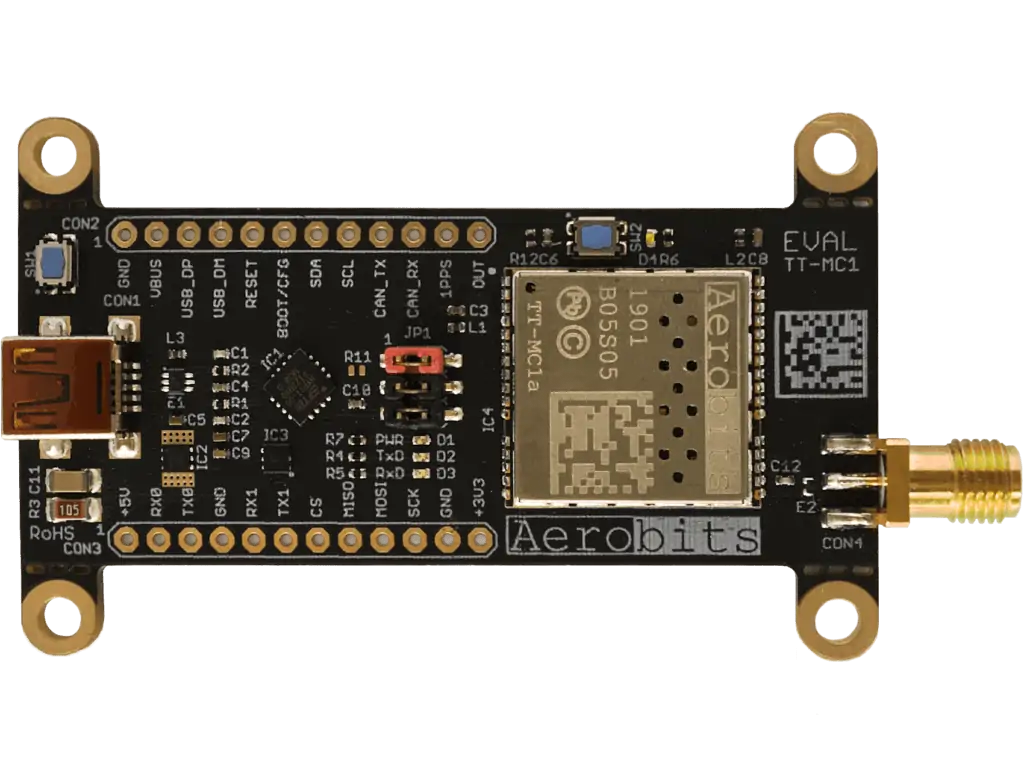

EVAL-TT-MC1 Evaluation Board for the TT-MC1
The evaluation kit provides a quick introduction to the TT-MC1 module. It is a high-quality 1090MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPS specified in TSO-C199.
EVAL-TT-MC1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping, through tabular and 3D views.
Features- Quick start with the OEM TT-MC1 module
- Designed to be powered by USB or an external 5V supply
- LED for USB communication and one LED for internal functions
- Virtual COM port with simple firmware update capability
- Extension header for external power supply and communication
- ESD protection
- All necessary components in the box (antenna, USB cable, etc.)
- Dedicated software available
- Evaluation board
- Wideband antenna (0-1dBi) 3 m
- fl / SMA adapter 10.5 cm
- USB cable 30 cm
- 2 x Pinheader for extensions connector
