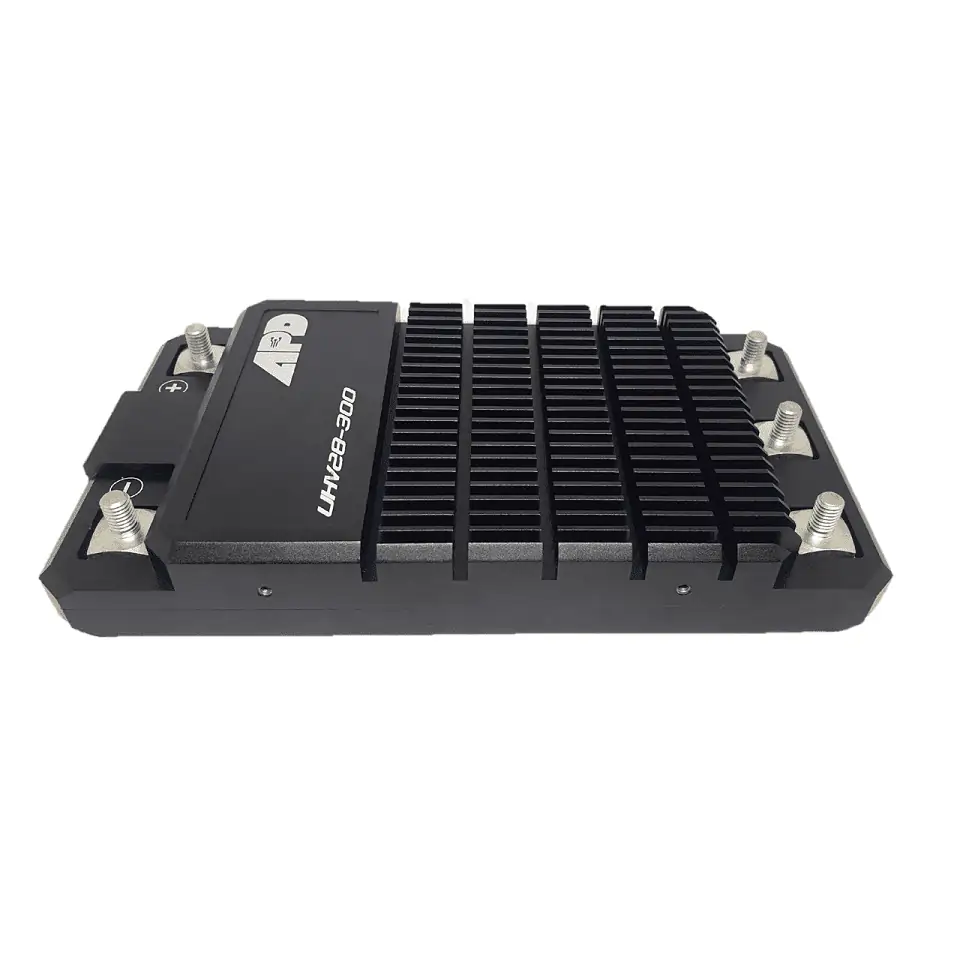

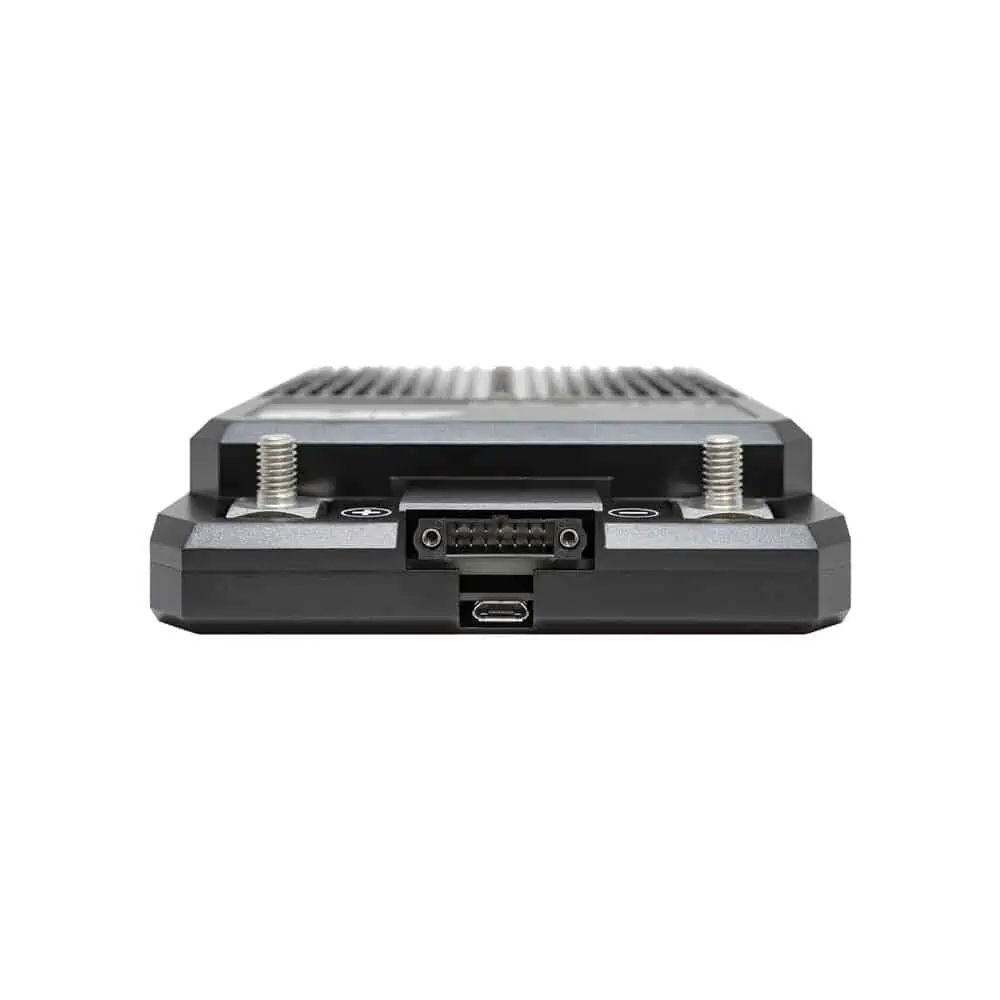

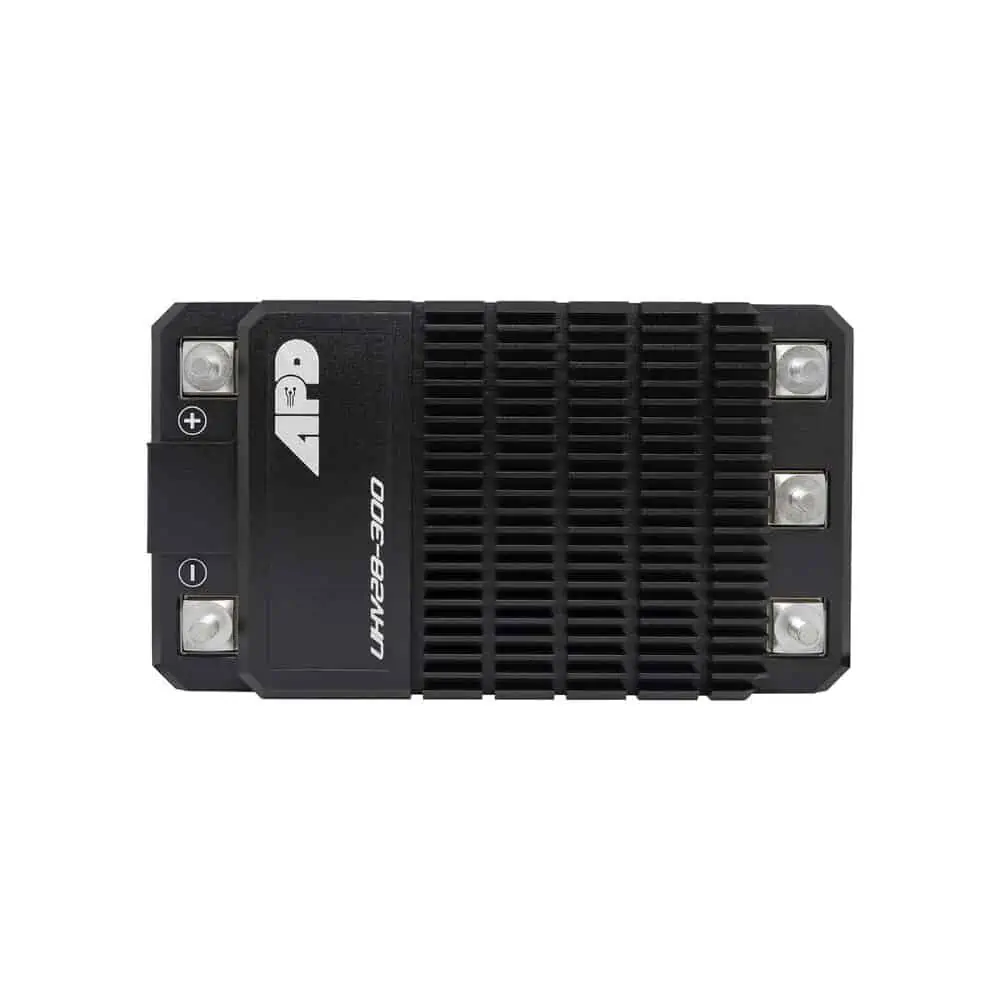

UHV Electronic Speed Controllers
The UHV ESC is designed to deliver high power output for demanding heavy-lift drone applications. It delivers up to 45 kW with fast throttle response that is linear over the complete output range, and can be configured for fast response or drive-train protection.
The UHV is motor-agnostic, requiring no tuning. Active Phase-Current Demagnetisation (APCD) combined with dynamic synchronous rectification provide maximum efficiency for almost all powertrain combinations.
Advanced features of the UHV ESC include:
- Optional fan mount for reduced cooling environments
- Standard 500 Hz PWM Input
- CANBUS input capable (special order)
- True 12-bit throttle resolution
- Onboard 16 megabit flash for data logging
Specifications:
| UHV20 | UHV28 | |
| Dimensions (L x W x D) |
180 x 100 x 27 mm | 180 x 100 x 27 mm |
| Weight | 740 g | 740 g |
| Voltage | 15 - 85V | 15 - 120V |
| Max Current (continuous 60s/burst 1s) |
400/450 A | 300/400 A |
| Max Power (continuous/burst) |
25/35 kW | 25/35 kW |
