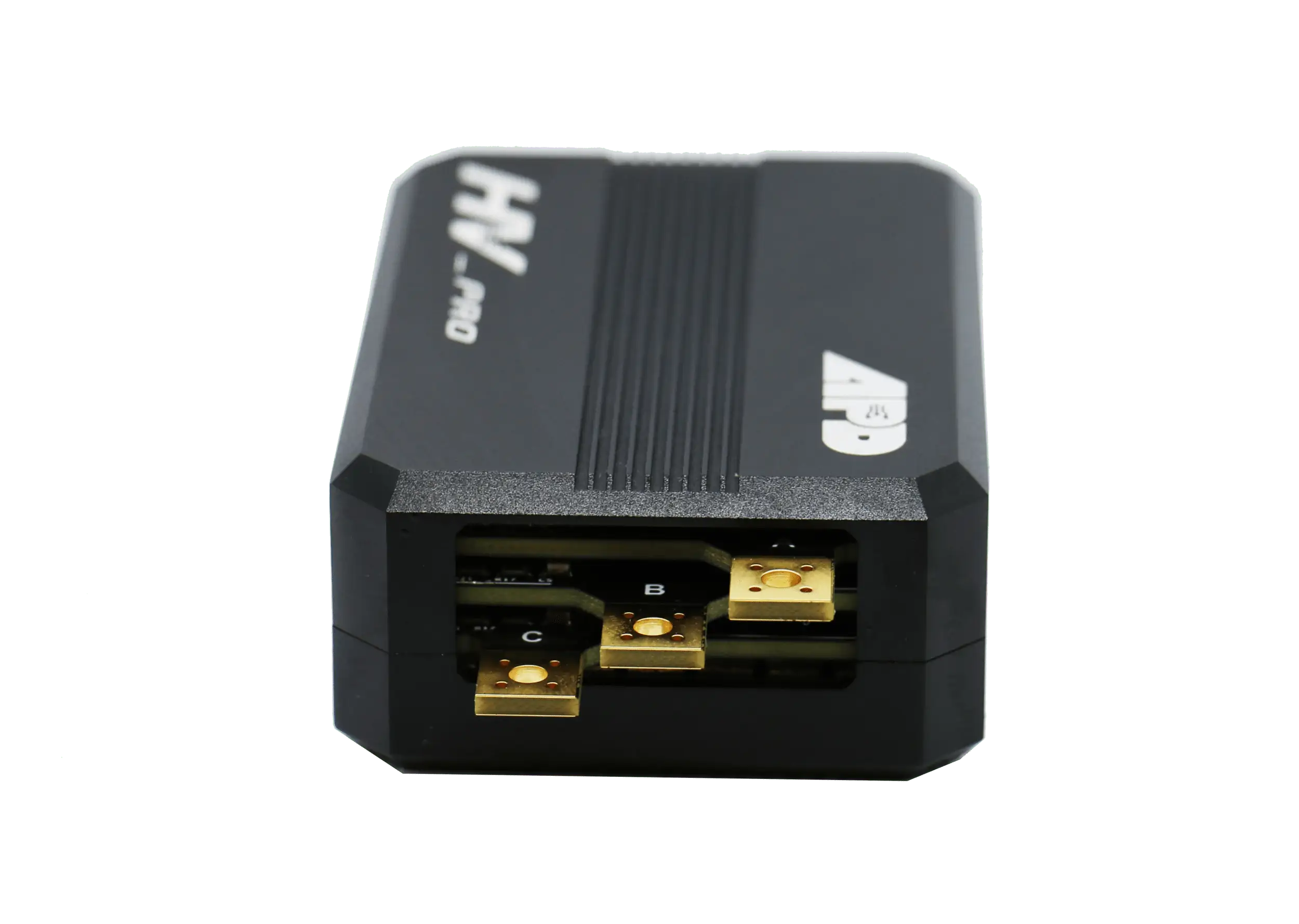

HV Pro Electronic Speed Controllers
The HV Pro is Advanced Power Drives' highest power density motor controller, designed to deliver bursts of high power with fast throttle response while still fitting comfortably into space- and weight-constrained UAV platforms.
The motor-agnostic system features proprietary firmware that delivers unmatched low-throttle and starting characteristics, high-resolution throttle input as well as multiple drive modes to meet a variety of requirements. Active Phase-Current Demagnetisation (APCD) combined with dynamic synchronous rectification provide maximum efficiency for almost all powertrain combinations.
Advanced features of the HV Pro ESCs include:
- Virtually unlimited MTBF due to the onboard ceramics
- Standard 500 Hz PWM Input
- CANBUS input capable (special order)
- True 12-bit throttle resolution
- Onboard 16 megabit flash for data logging
Specifications:
| HV14 | HVP16 | HVP20 | HVP24 | |
| Dimensions (L x W x D) |
96 x 52 x 22 mm | 96 x 52 x 26 mm | 96 x 52 x 26 mm | 96 x 52 x 26 mm |
| Weight | 155g | 260g | 260g | 260g |
| Voltage | 15 - 60V | 15 - 68V | 15 - 85V | 15 - 100V |
| Max Current (continuous 60s/burst 1s) |
240 /360 A | 400 /600 A | 300/450 A | 200/300 A |
| Max Power (continuous/burst) |
12/18 kW | 15/20 kW | 15/20 kW | 15/20 kW |
