Autonomous and Unmanned Surface Vessels for Marine Monitoring & Surveying

Oceanalpha
Oceanalpha USVs

Oceanalpha is a leading developer of Unmanned Surface Vehicle (USV) platforms, offering USV solutions for a number of applications, including: water quality sampling & monitoring, flow measurement, hydrographic survey, oceanographic research, security patrol, search & rescue, and maritime missions.

Oceanalpha Unmaned Vessels

Featuring advanced intelligent technology, Oceanalpha autonomous boats have been used by commercial clients, government organizations, research institutes and universities across the world.

Our USV platforms are a reliable way to improve working efficiency on the water and can be used for hydrology research, scientific exploration, hydrographic survey, emergency search and rescue, security patrol, fire control and other tasks. We continuously develop our advanced USV solutions to meet the requirements of our customers.

Environmental Monitoring

Monitoring the quality of water in rivers and lakes is of great importance to humans and wildlife alike. Conducting manual sampling and surveying of large bodies of water can be extremely challenging and resource-intensive. Our USV platforms vastly reduce the time and effort required to conduct missions that help keep drinking water safe, react to pollution disasters, and conserve wild plants and animals.

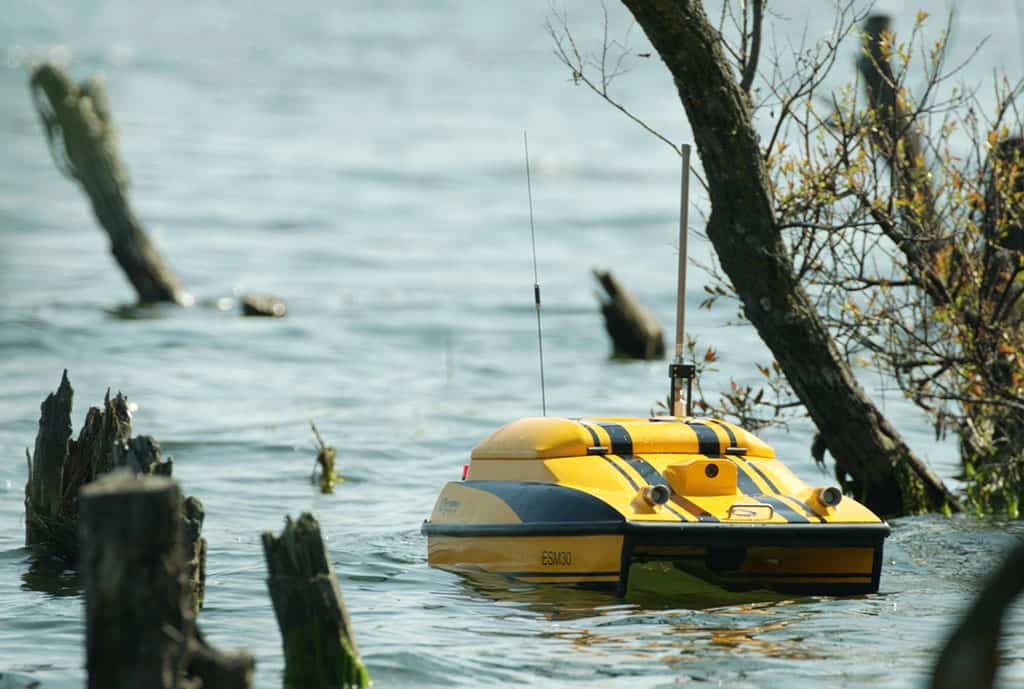

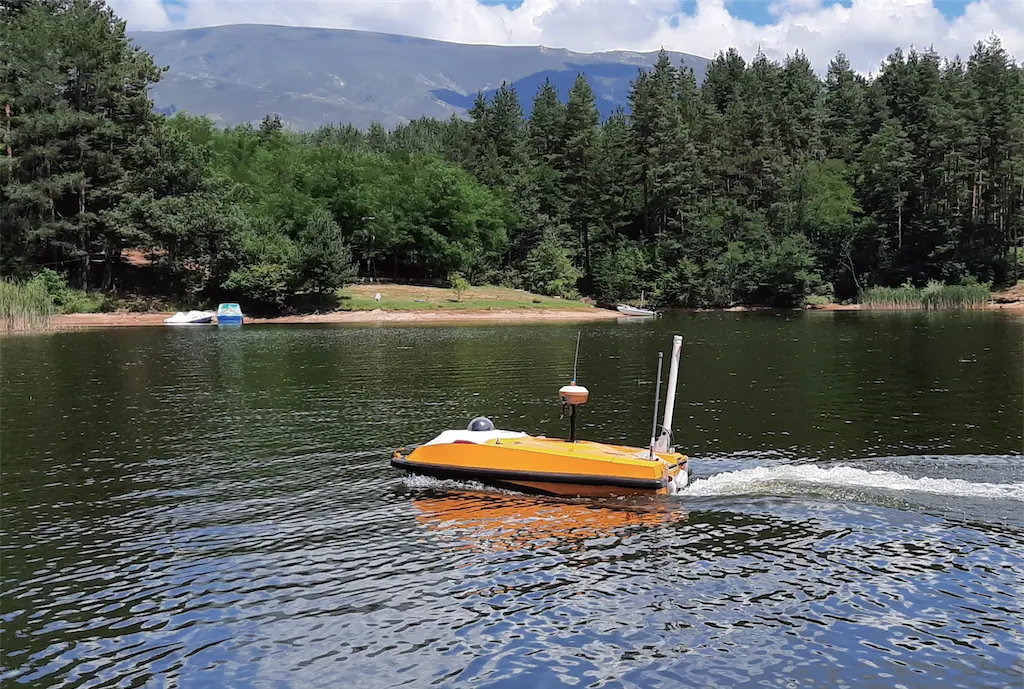

ESM30 Autonomous Water Sampling & Monitoring Boat

ESM30 Unmanned Surface Vessel

The ESM30 is an autonomous water sampling & monitoring unmanned surface vehicle (USV) designed to provide a fast response to sudden water pollution accidents in difficult or challenging environments, and to conduct water sampling tasks in lakes, rivers or reservoirs.

The ESM30 uses GPS location tracking to follow preset waypoints and mission parameters, navigating autonomously while intelligently avoiding obstacles up to 10m ahead. It can integrate third-party probes, such as YSI, hydrolab and eureka, for online data acquisition and the creation of water quality contour maps.

Specifications:

Dimensions 1150 x 800 x 430mm
Weight 31kg
Power supply 14.8V, 20Ah high-power Li-polymer battery
Endurance 3 hours
Sampling Depth
0.3-0.5m
Max Sampling Volume 8 litres
RF point-to-point range 5km
Payload 15kg
Max Speed 1.5m/s

TC40 Underwater Exploration USV

TC40 Underwater Exploration USV

The TC40 USV is designed to track the source of water pollution, detecting hidden and buried sewage pipes at ranges of up to 100 metres and reporting their locations accurately using GPS. It can capture and transmit images at resolutions of up to 3cm, as well as live video.

The TC40 can be manually controlled or navigate autonomously.

Specifications:

Dimensions 1637 x 711 x 372mm
Weight 20kg
Power supply 14.8V, 21Ah high power Li-polymer battery
RF point-to-point range 10km
Video Transmission WIFI/4G range WIFI/4G range: 5km
Top Speed
4m/s
Endurance 2 hours at 2m/s speed

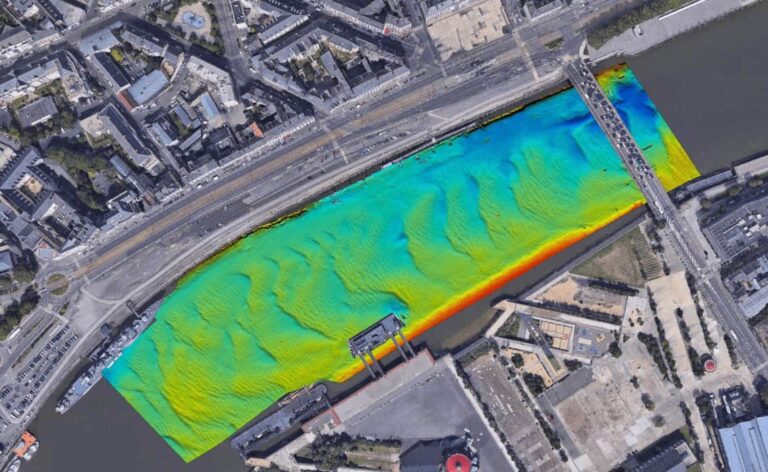

Hydrographic Surveying

ME40 Unmanned Surface VesselHydrographic surveys measure the physical features of seas, lakes, rivers and other bodies of water, and are often conducted to ascertain how these features will affect navigation, construction, exploration, oil and gas drilling and other maritime activities.

Our USV survey platforms can greatly accelerate hydrographic data collection, requiring less manpower and cutting down on costs.

CL20 Hydrographic Survey USV

CL20 Hydrographic Survey USVThe CL20 is designed for water discharge measurement and hydrographic surveying. With a carbon fiber and fiber glass hull it weighs just 12kg, making it highly maneuverable and easily operated by just one individual. It’s compact size means it can be transported in the back of a truck or SUV.

With a maximum speed of 5.5m/s and a 2km control range, the boat is suitable for most water current environments.

The CL20 is compatible with different brand ADCP and single beam sonar, such as RDI, Sontek, and Linkquest.

Specifications:

Dimensions 1050 x 500 x 300mm
Data Telemetry Range 2km
Remote controller range 2km
Weight 12kg
Payload 10kg
Max Speed
5.5m/s
Motor Dual Brushless 24V DC Outdrive

ME40 Autonomous Hydrographic Survey Boat

ME40 Autonomous Hydrographic Survey Boat

The ME40 is a hydrographic survey vessel constructed with a trimaran hull design for stable sailing and a shallow draft that allows it to survey reefs and areas close to shore with its single-beam sonar. The in-built inertial navigation system allows it to provide accurate real-time survey data.

The ME40 greatly improves the flexibility and efficiency of bathymetry surveys, and is widely used in reservoirs, lakes and tailing ponds removing humans from potentially hazard  situations.

Specifications:

Dimensions 1360 x 710 x 420mm
RF point to point range 5km
Weight 33kg
Payload 10kg
Draft
20cm
Max Speed
5m/s
Duration 4h
Remote controller range 2km

ME70 Catamaran Hydrographic Survey USV

ME70 Catamaran Hydrographic Survey USV

The ME70 is an unmanned vessel designed for heavy-load missions in conditions of up to Sea State 2. It is able to carry up to 25kg of additional payload, allowing the boat to be adapted for a wide range of applications including geological mapping and radiation detection.

The ME70 is equipped with GPRS networking, allowing for uninterrupted communications and real-time video and data transfer.

Specifications:

Dimensions 1630 x 710 x 420mm
RF point-to-point range 5km
Weight 33kg
Payload 10kg
Draft
20cm
Max Speed 5m/s
Duration 4h
Remote controller range 2km

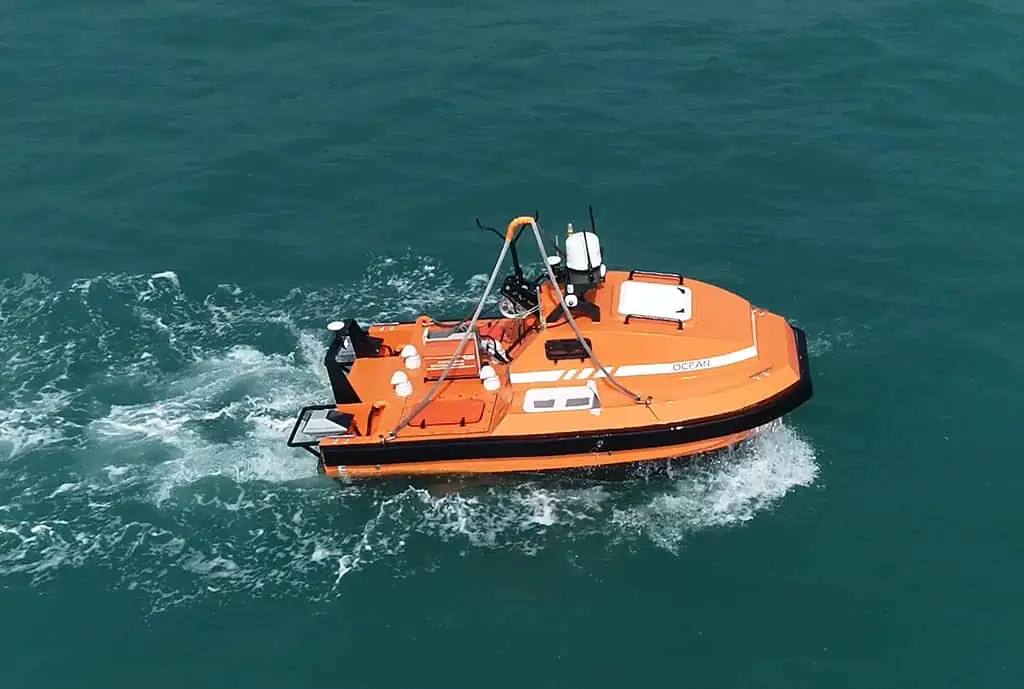

M40A Catamaran Oceanographic Survey USV

M40A Catamaran Oceanographic Survey USVThe M40A is a medium size autonomous survey platform, designed for bathymetry surveys in coastal areas and oceans. With a modular catamaran design and flexible payload for instruments, the M40A was developed to provide high performance surveys with single or multi beam sonars, as well as different kinds of hydrographic and monitoring instruments.

The M40A has an aluminum and carbon fiber hull and is powered by a high capacity lithium polymer battery.

Specifications:

Dimensions 3300 x 1900 x 2200mm
Weight 450kg
Payload 60kg
Max Speed 4m/s
Endurance 6h (@3m/s)
Navigation Control range 5km
Data Telemetry range 2km

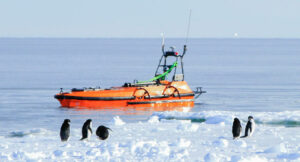

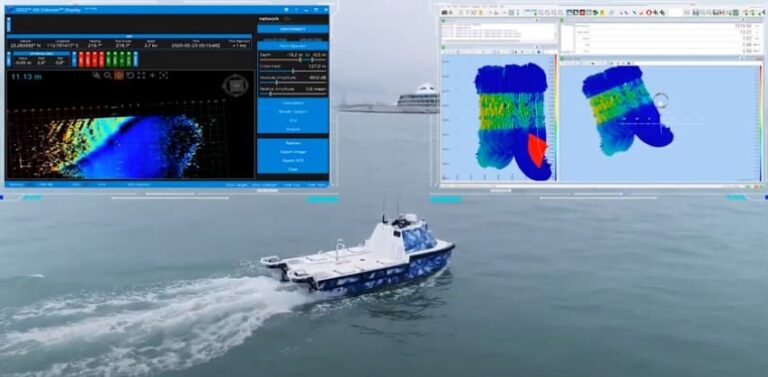

M80B Oceanographic Survey USV

M80B Oceanographic Survey USVThe M80B is a large autonomous survey platform designed for oceanographic surveys. Developed to conduct high performance surveys, the M80B can carry a variety of equipment to a range of tasks, such as bathymetry, surveying waterways, and maritime search & rescue missions.

Powered by a diesel engine and capable of operating in Sea State 3, it can achieve a top speed of 12 knots and can operate for up to 10 hours (at speeds of 6 knots). The boat is equipped with radar and sonar for obstacle avoidance.

The boat is customized to carry Teledyne T50P and T20P multi-beam echo sounders.

Specifications:

Dimensions 5650 x 2400 x 2100mm
Weight 1400kg
Payload 200kg
Max Speed 12 knots
Endurance 10h (@6kt)
Communication range 30km
Power 110HP*1 Disel Engine

Maritime Solutions

Our maritime USVs are multi-task unmanned surface platforms capable of high speeds and long-distance GPS navigation. The vessels are ideal for security patrols, target monitoring, and identifying & tracking missions, providing a fast response even in difficult weather conditions.

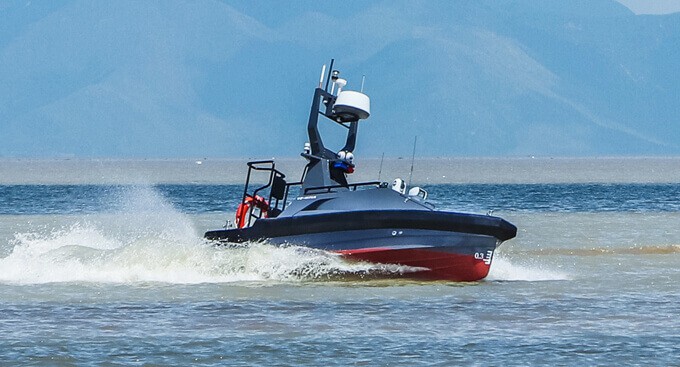

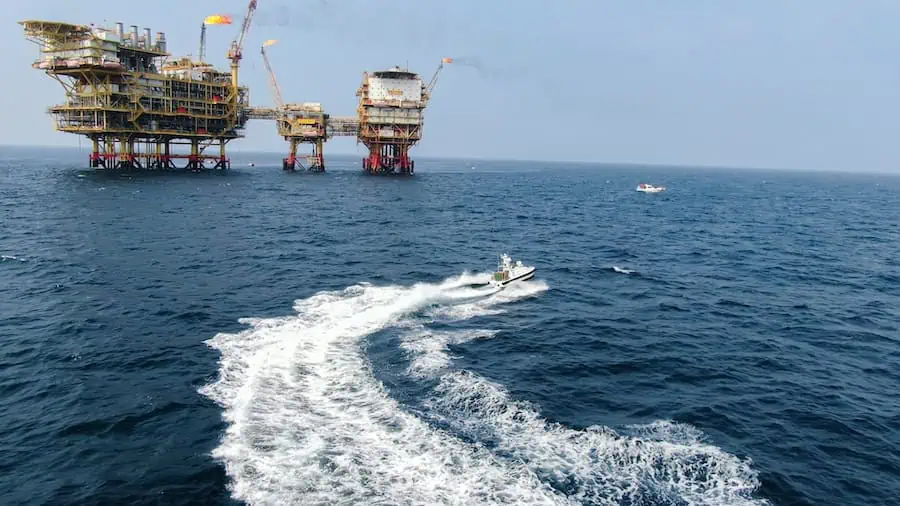

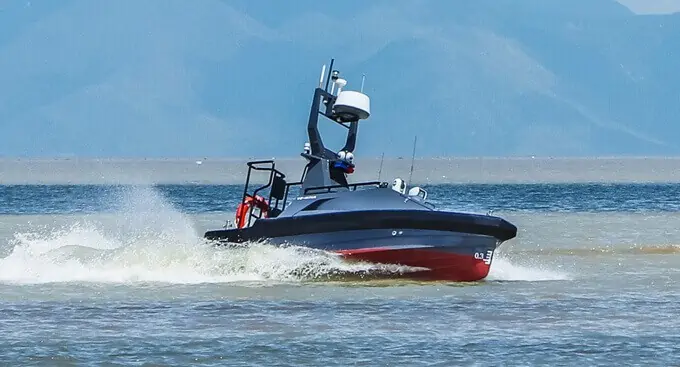

M75 High Speed Security Patrol USV

M75 High Speed Security Patrol USV

The M75 is designed for maritime security and patrol missions, as well as use in investigation and evidence collection areas. The high speed propulsion system ensures the M75 will arrive quickly to a given location.

Constructed from high strength fiber glass, with carbon fiber and kevlar ballistic fabrics the M75 can operate in Sea State 4 conditions.

The vessel can switch between manned and unmanned mode, allowing the operator to select how it is controlled depending on the situation.

Specifications:

Dimensions 5000 x 1700 x 2400mm
Data Range 50km
Video range 30km
Weight 750kg
Max Speed
35 knots

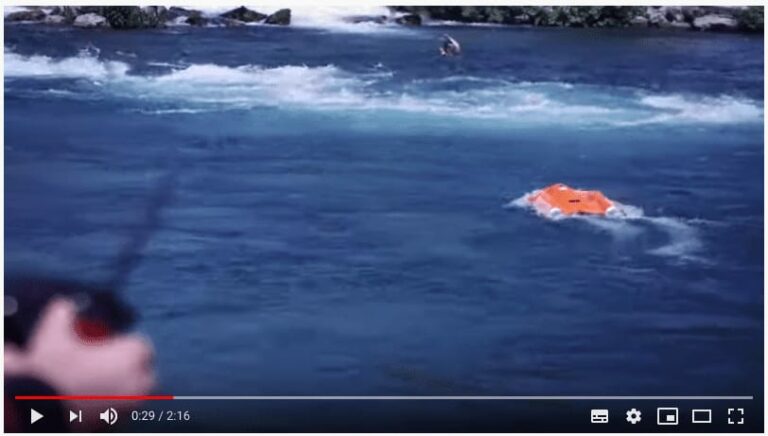

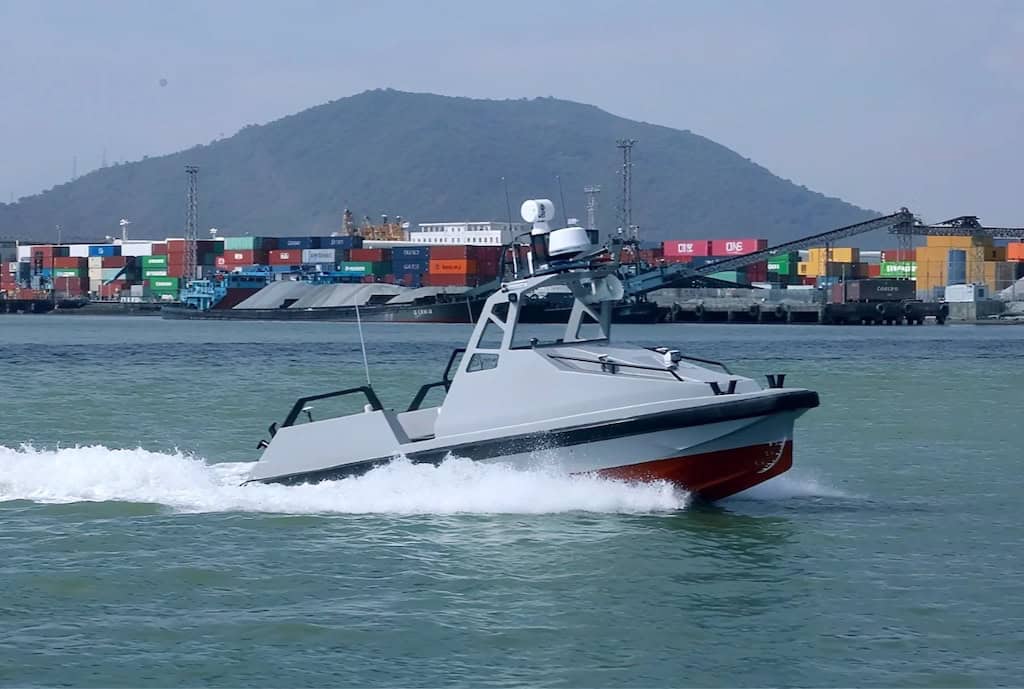

L30 Fire Control and Rescue USV

L30 Fire Control and Rescue USVThe L30 is a large platform for fire control on water. Equipped with a 50m range professional fire water cannon, it also carries life rafts and buoys. The life raft can be released via remote control during a mission to rescue individuals that may have evacuated into the water. The cockpit allows space to carry 4-6 individuals on board.

Powered by a diesel engine, the L30 can achieve a top speed of 45 knots to provide a rapid response in most sea conditions, up to Sea State 5.

L30 Autonomous Fire Control and Rescue Boats

Specifications:

Dimensions 7500 x 2670 x 2500mm
Data Range 50km
Video range 30km
Draft 0.31m
Max Speed
45 knots
