Embedded Cameras, Lenses and Image Sensors for Unmanned Applications

FRAMOS Technologies Inc.
Framos

Framos Technologies is a leading provider of embedded vision products for UAVs (Unmanned Aerial Vehicles) and other robotics systems. Our embedded vision solutions enable deep learning and data analysis for a wide variety of applications including military & security, inspection & measurement, precision agriculture, surveying, and broadcasting.

We can support your embedded machine vision requirements, whether you need a single sensor or a complete off-the-shelf solution. Our experienced team can customize embedded vision camera modules with UAV-specific features (such as data compression, storage and transmission).

Intel RealSense 3D Cameras

3D Cameras for Drone-Based Aerial Applications

3D cameras use depth measurement to determine distances and map surfaces, and are used in a variety of drone-based measurement and inspection applications. The sensors provide accurate obstacle detection and recognition, allowing the UAV to follow an object and also navigate around it.

We can provide advice and support to help you choose the right 3D system and integrate it seamlessly into your unmanned or autonomous application.

Intel RealSense D415 3D Camera for Drones

Intel RealSense 3D Camera Module for Drones

The cameras are available as fully-housed USB-powered units or as modules designed for OEMs and system integrators with board-to-board connectors.

Intel’s RealSense 3D cameras are supported by a RealSense SDK (Software Development Kit) that allows developers to easily create intelligent 3D systems.

Intel RealSense Depth Module D400 Intel RealSense Depth Module D410 Intel RealSense Depth Module D415 Intel RealSense Depth Module D420 Intel RealSense Depth Module D430 Intel RealSense Depth Camera D415 Intel RealSense Depth Camera D435
Modal D400 Module D410 Module D415 Module D420 Module D430 Module D415 Camera D435 Camera
Minimum Depth Distance (mm) 300 300 300 200 200 300 200
Baseline (mm) 55 55 55 50 50 55 50
Max RGB Frame Rate (fps) N/A N/A 60 N/A N/A 60 60
Max RGB Resolution N/A N/A 1920×1080 N/A N/A 1920×1080 1920×1080
Max Depth Frame Rate (fps) 90 90 90 90 90 90 90
Max Depth Resolution 1280x720  1280×720  1280×720  1280×720  1280×720  1280×720  1280×720
FOV Diagonal (mm) 42.5 42.5 42.5 65.5 65.5 42.5 65.5

Find out more: Intel RealSense 3D Cameras

Sunex Miniature and M12 Mount Lenses

Miniature Lenses for Small Module Drone Cameras

High-quality optics are crucial to achieving the best results from any embedded vision platform. We provide lenses that are ideal for small camera-based systems and unmanned vehicle applications where space and weight are at a premium.

Sunex miniature and M12 mount lenses are available in a wide range of sizes, specifications, and IR filtering wavelengths.

Sunex M12 Mount Lens for Small Module Drone Cameras

Sunex Miniature Lens for Small Module Drone Cameras

Sunex Miniature Lenses for Small Module Drone Cameras

Sony Camera Modules

Miniature Camera Modules for UAVs and UGVs

These miniature Sony camera modules are designed for direct integration into UAVs and other robotic systems. Providing high-performance image processing in a compact package, the modules offer a small footprint, low power consumption and easy integration.

The FCB-EH3410 features automatic luminance difference monitoring and automatic triggering of the Wide D feature in high-contrast environments.

Sony FCB-EH3410 Miniature Camera Module for Drones

The FCB-EV7500 leverages a 1/2.8-type Exmor CMOS image sensor for Full HD (1080/60p) performance, and a 30x high-quality optical zoom lens.

Sony FCB-EV7500 Miniature Camera Module for Drones

Find out more: Sony Camera Modules

CMOS Area Scan Sensors

High Resolution Image Sensors for Unmanned Applications

Image sensors are the foundation of any embedded vision system, and area scan sensors output both horizontal and vertical pixels, giving an instant 2D representation of the entire field of view.  Fast, high-resolution 2D image capture is crucial for many intelligent drone-based machine vision applications and autonomous vehicles. Our experienced applications engineers are available to support you in your selection and implementation of the right area scan sensor for your application.

On Semi Area Scan Sensors

On Semi AR0135 CMOS Image Sensor for Unmanned Applications

The AR0135 is a 1/3-inch 1.2 megapixel CMOS digital image sensor with an active-pixel array of 1280×960. With excellent low-light performance and the ability to capture clear still images as well as continuous video, it is an ideal choice for machine vision applications. The sensor also features a global shutter for accurate motion capture, and advanced camera functions such as auto exposure control, windowing and scaling.

The AR1820 is an 18 megapixel, 1/2.3-inch format, 1.25 um pixel sensor with the ability to dynamically optimize its resolution and frame rate for different lighting conditions. With a maximum resolution of 4912×3684 and maximum frame rate of 120 fps, it is ideally suited for a wide range of applications such as security, surveillance and broadcasting.

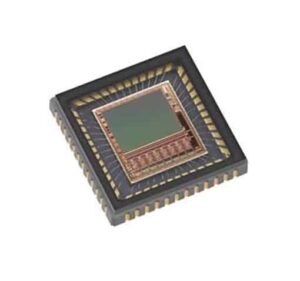

On Semi Python CMOS Image Sensors for Drones

With over 60 sensors to choose from, the On Semi Python range features high sensitivity CMOS image sensors suitable for a broad range of intelligent vision applications for drones and other unmanned vehicles.

On Semi Python sensors range from 0.31 to 26.21 megapixels resolution and 43 to 815 fps frame rate, offering a wide range of monochrome and colour solutions for your embedded vision requirements. Other features include LVDS output, NIR enhancements and global shutters.

Sony CMOS Sensors

The Sony IMX264 and IMX265 are CMOS active pixel solid-state sensors that deliver high sensitivity, low dark current and low PLS characteristics. Available in monochrome or colour and featuring a global shutter with variable charge-integration time, the sensors are ideal for consumer drone imaging applications. The IMX264 measures 11.1mm diagonally with 5.07 million effective pixels, and the IMX265 measures 8.9mm diagonally with 3.19 million effective pixels.

Sony IMX264 and IMX265 CMOS Sensors for Drones

The Sony IMX377 and IMX477 are Type 1/2.3 inch 12.3 megapixel colour CMOS sensors with electronic rolling shutters for high-speed image capture. The IMX477 leverages Exmor RS technology to achieve even greater sensitivity and lower noise than conventional CMOS sensors. Both the IMX377 and IMX477 are ideal solutions for high-resolution multispectral imaging on board drones and other unmanned vehicles.

Find out more: CMOS Area Scan Sensors
