DARPA’s SideArm Prototype Successfully Retrieves UAS Mid-Flight

By Caroline Rees / 14 Feb 2017
Follow UST

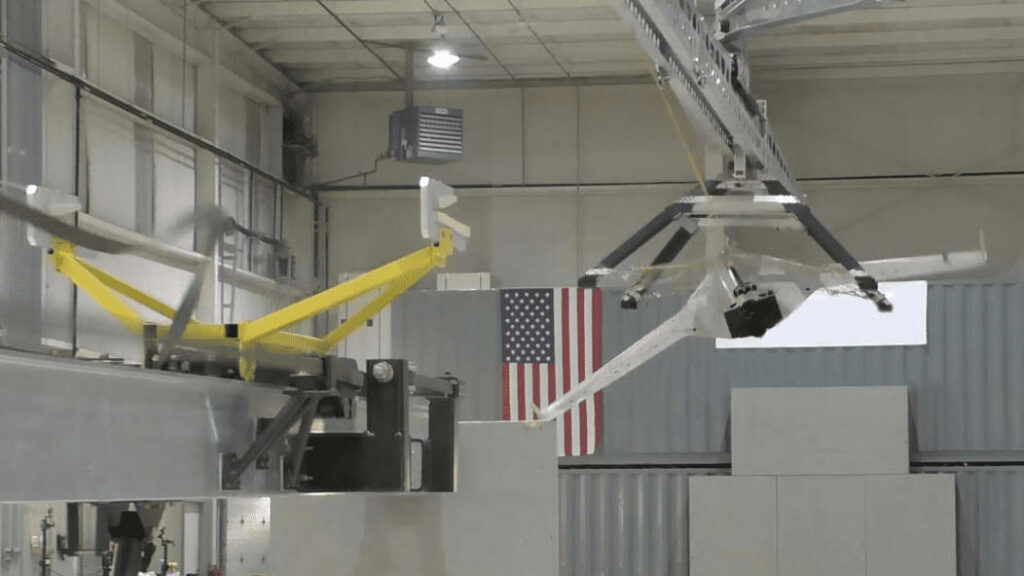

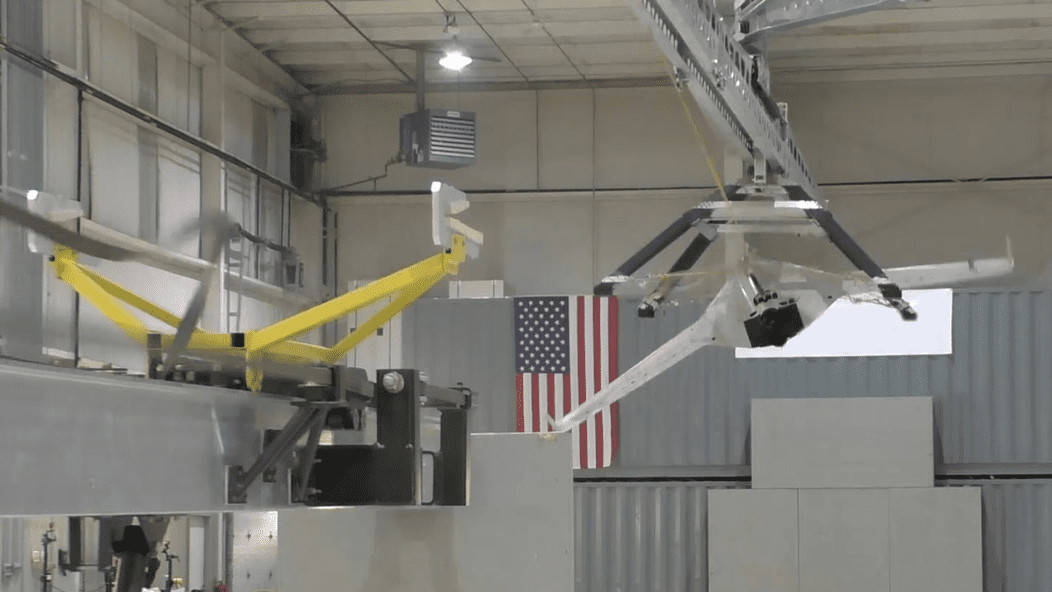

SideArm UAS retrieval demonstration

DARPA has confirmed that in December 2016, Aurora Flight Sciences successfully tested a full-scale technology demonstration system that repeatedly captured a 400-pound Lockheed Martin Fury UAS accelerated to representative flight speeds via an external catapult, as part of DARPA’s SideArm research project.

The project seeks to create a self-contained, portable apparatus for use by U.S. military units around the world, that allows them to horizontally launch and retrieve unmanned aerial systems (UASs) of up to 900 pounds over extremely short distances.

Watch the demonstration:

The SideArm system fits in the footprint of a standard 20-foot shipping container for easy transport by truck, ship, rail, C-130 transport aircraft, and CH-47 heavy-lift helicopter. The small-footprint system is designed to operate in truck-mounted, ship-mounted, and standalone/fixed-site facilities. A crew of only two to four people can set up or stow the system in minutes.

SideArm owes its small size to combining its launch and capture equipment into a single rail that folds for transport. Rather than using a traditional capture method that uses a net to catch the UAS, the system snags a hook on the back of the vehicle and directs the hook to travel down the rail. This approach provides slower, more constant and controlled deceleration, which is safer for the vehicle. The system is capable of recovering aircraft up to 1,100 pounds — exceeding DARPA’s design objectives — and furthers the project’s goal of supporting larger UASs up to 1,320 pounds.

“SideArm aims to replicate carriers’ capability to quickly and safely accelerate and decelerate planes through a portable, low-cost kit that is mission-flexible, independent from local infrastructure, and compatible with existing and future tactical unmanned aircraft,” said Graham Drozeski, DARPA program manager. “We’ve demonstrated a reliable capture mechanism that can go anywhere a 20-foot container can go—the DARPA-worthy challenge we had to overcome to make SideArm’s envisioned capabilities possible. We are pleased with the progress we’ve made enabling a wide variety of sea- and land-based platforms with persistent intelligence, surveillance, and reconnaissance (ISR) and strike capabilities.”

SideArm is part of DARPA’s individual investment in Phase 1 research for Tern, a joint program between DARPA and the U.S. Navy’s Office of Naval Research (ONR). Now that demonstration of the capture system is complete, DARPA is working to identify potential transition partners and exploring using SideArm with other UAS platforms.
