X-ES Introduces New Xilinx Artix-7 FPGA-Based VME SBCs

By Caroline Rees / 01 Feb 2016
Follow UST

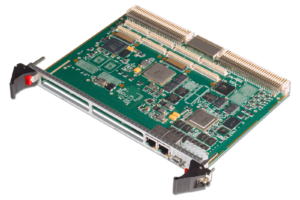

XCalibur1931 6U VME Module

The XCalibur1931 6U VME Module

Extreme Engineering Solutions, Inc. (X-ES) has announced several new 6U VME SBCs featuring a Xilinx Artix-7 FPGA-based VME Bridge. These 6U VME products are designed to be pin-compatible with the Radstone/GE/Abaco PPC7D VME IDT Tsi148-based card, providing users with a straightforward, disruption-free upgrade path for legacy systems and a solution to End-of-Life (EOL) VME products that included the now obsolete Tsi148 VME Bridge.

X-ES selects an FPGA-based VME solution enabling high performance VMEBus capability on our flagship SBCs. Offering a wide variety of valuable features beyond what the Tsi148 VME Bridge had been capable of, the Xilinx Artix-7 VME Bridge supports a x4 PCI Express 2.0 to the host interface and supports an external DDR3 SDRAM DMA buffer.

With its firmware upgradeable design and support for future portability of IP to a new chip, X-ES VME boards offer system integrators a VME Bridge solution devoid of components subject to lifecycle concerns, in an even smaller chip package than had previously been available.

XCalibur1931 & XCalibur1930 NXP 6U VME SBCs
The XCalibur1931 and XCalibur1930 both feature the NXP T2080 QorIQ communications processor alongside a Xilinx Artix-7 FPGA-based VME Bridge solution. Both are designed to address the EOL of the IDT/Tundra Tsi148. The Xilinx FPGA based VME bridge provides a means to mitigate obsolescence and ensure a long product lifetime.

The XCalibur1931, with its Radstone/GE/Abaco PPC7D-compatible pinout and NXP QorIQ T2080 processor coupled with up to 8 GB of DRAM, along with up to 32 GB NAND flash and two XMC/PMC sites, provides a significant performance boost over the PowerPC 7447.

The XCalibur1930 is the latest in X-ES’ line of PowerPC VME SBCs. It was designed to provide our existing customers with an upgrade path from X-ES’ previous VME offerings.

Both the XCalibur1931 and XCalibur1930 utilize the same Xilinx Artix-7 FPGA based VME bridge. The bridge supports all of the VME transfer modes from VME32 up through 2eSST320, providing drop-in compatibility or performance boost.

XCalibur4531 Intel® 6U VME SBC
The XCalibur4531 is a 5th Generation Intel® Core™ i7 6U VME SBC featuring a Xilinx Artix-7 FPGA-based VME bridging solution. By implementing an FPGA-based VME bridge, the XCalibur4531 mitigates obsolescence concerns prevalent in aging VME systems.

XCalibur4531 supports VME32, VME64x, and 2eSST operation so it easily integrates into existing VME systems, making it the optimal choice to give your application a processing performance boost.

XCalibur4531 supports up to 16 GB ECC SDRAM, 64 GB onboard SSD storage, and hosts two XMC or PMC modules. XCalibur4531 is available in both air- and conduction-cooled assemblies with standard I/O interfaces including serial, video, USB, Ethernet, and SATA.

XChange4003 6U VME Carrier

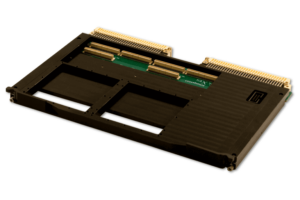

XChange4003 6U VME Carrier

The XChange4003 6U VME Carrier

The XChange4003 is a VME64x carrier card that facilitates connectivity of XMC/PMC modules to the VMEBus, by utilizing a Xilinx Artix-7 FPGA-based VME bridging solution. The FPGA-based VME bridge solution assures long production life and high performance operation.

XChange4003 supports all deployed versions of the VMEBus protocol, from the original VME32 up through VME64x and 2eVME/2eSST operation, making it an effective solution for interfacing any XMC/PMC module to any system’s VMEBus backplane.

XChange4003 supports both intelligent (Monarch PrPMC/Root Complex PrXMC) and non-intelligent (PMC/endpoint XMC) boards, and can operate in a SYSCON or non-SYSCON VMEBus slot.

To learn more, contact Extreme Engineering Solutions, Inc: Visit Website Send Message View Supplier Profile
